Create a directional plan directly in DirectionalPlan, or bring in existing Compass data.
Soft Launch • Free Browser-Based Well Planning
Modern Directional
Well Planning and
Anti-Collision in
Your Browser.
DirectionalPlan.com brings directional well planning, anti-collision, survey correction analysis, Compass import/export, and Well Seeker export together in your browser.
Try Free requires no account. Create a free account for full
soft-launch access, unlimited saved wells, and all available tools.
☁
No install required
⇄
Compass import & export
◆
Built for directional drilling

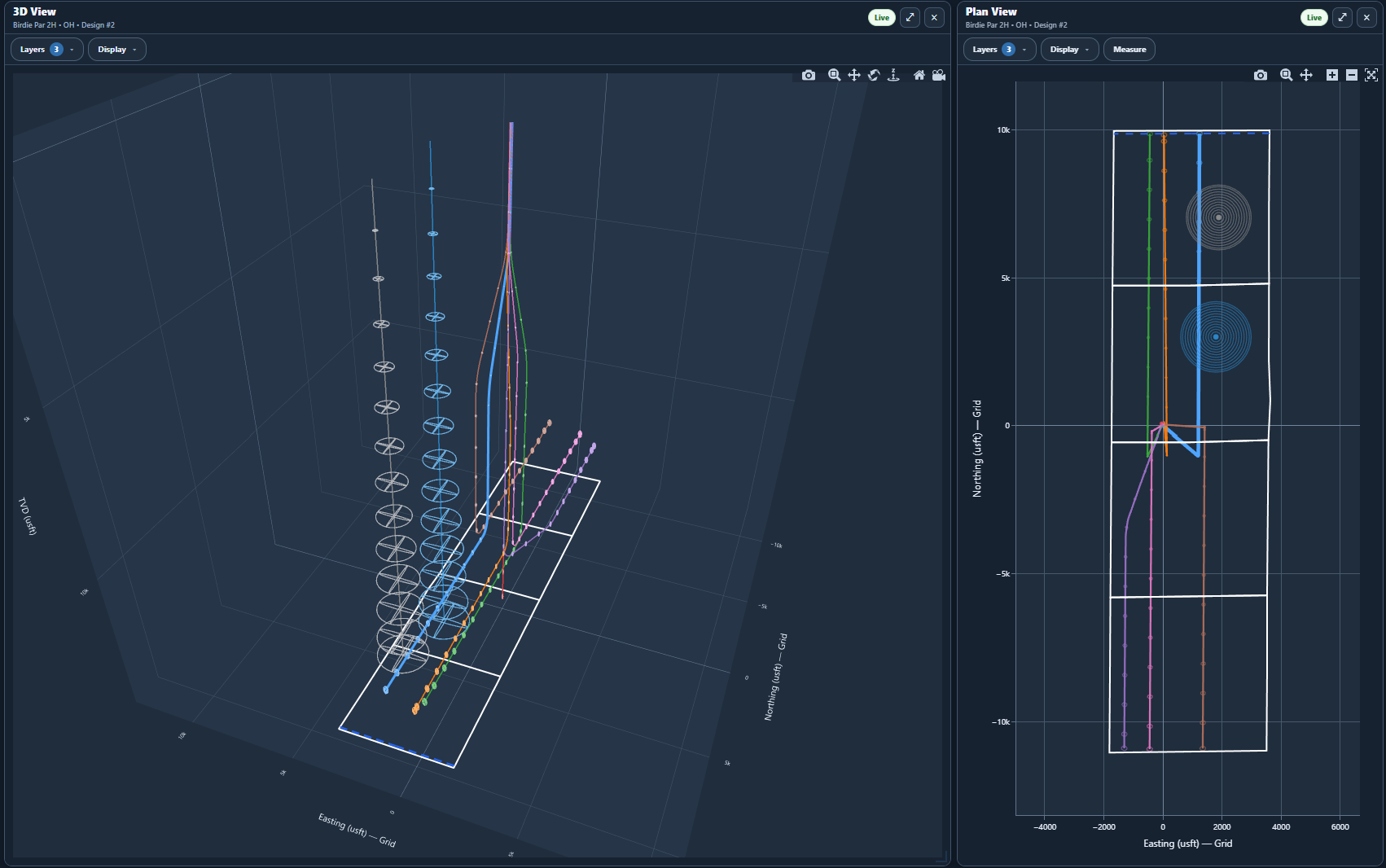

Plan View
Section View
3D View
NEW
Built to work with the tools you already use.
Bring existing work into DirectionalPlan, plan and analyze in the browser, and export results back to the software your team already uses.
Compass Import & Export
Import existing Compass well data and export updated plans back to Compass.
Well Seeker Export
Export directional well plans for use in Well Seeker.
Survey Corrections
BetaAnalyze raw MWD survey measurements, estimate potential corrections, and evaluate their effect on wellbore position.
Software Interoperability
Works With Your Existing Tools
Start a plan from scratch or bring in existing Compass data. Export when you're ready.
Start Planning
Export
→
Compass
Continue working in Compass
Well Seeker
Export directional well plans
MWD
Raw Measurements
Raw MWD Survey
Survey and sensor measurements
Analyze
→
QC
Survey Analysis
Survey Corrections
BetaEvaluate sensor behavior, potential error sources, correction estimates, and position impact.
Review
→
Correction Analysis
Raw vs. analyzed survey position
Independent Review
Verification required before operational use
Training & Education
Learn directional well planning at your own pace.
Watch step-by-step DirectionalPlan tutorials or learn the engineering concepts behind directional well planning, dogleg severity, minimum curvature, and anti-collision.
Core Capabilities
Directional
Well Planning
Build directional well plans for free using proven trajectory design methods.
Anti-Collision
Analysis
Evaluate separation factor and collision risk with engineering-grade calculations.

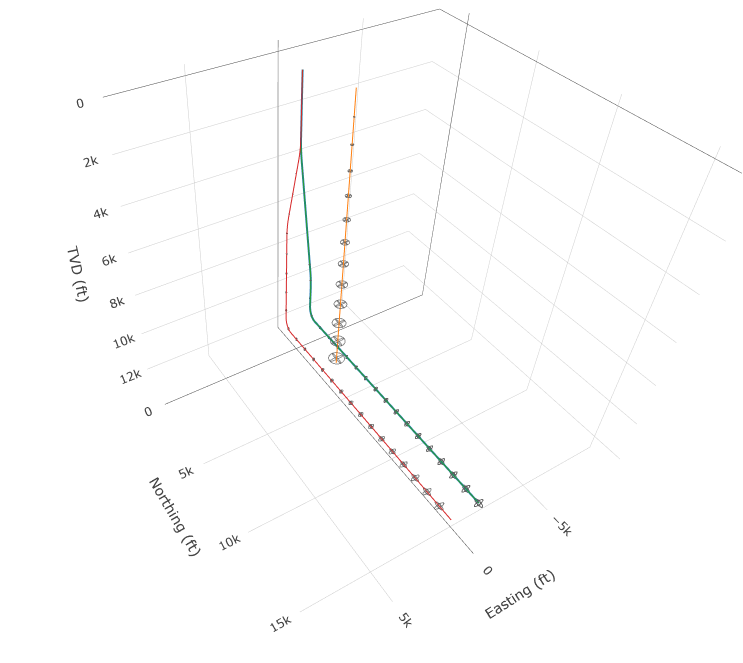

2D & 3D
Visualization
Visualize wells in plan, section, and interactive 3D for better decision-making.
Sidetrack &
Multi-Well Planning
Plan sidetracks and analyze complex well relationships with ease.
Reference Systems
& Magnetics
Handle coordinate systems, grid convergence, and magnetic models accurately.
PDF Reports
& Wall Plots
Generate directional reports, anti-collision PDFs, and wall plots directly from the browser.

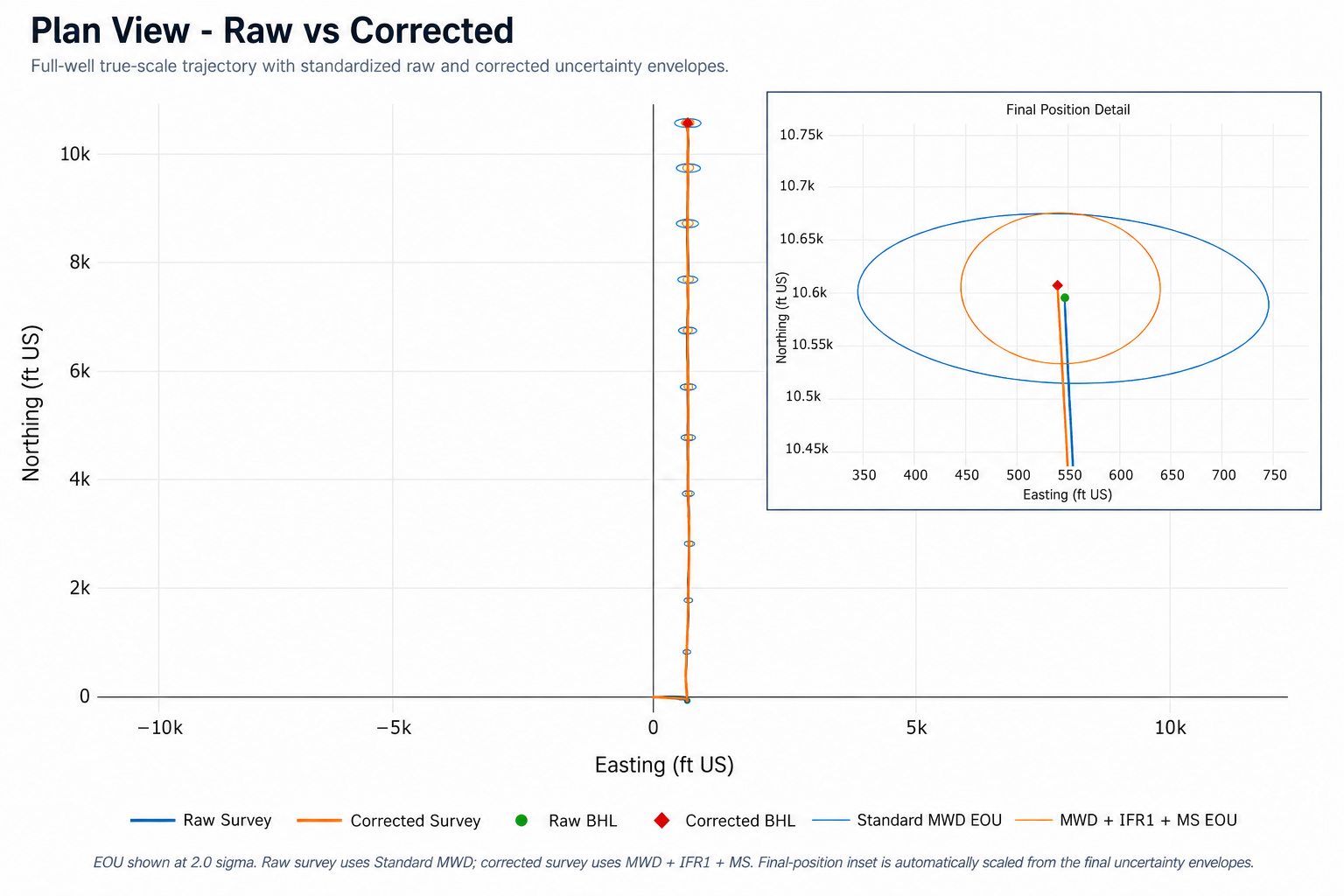

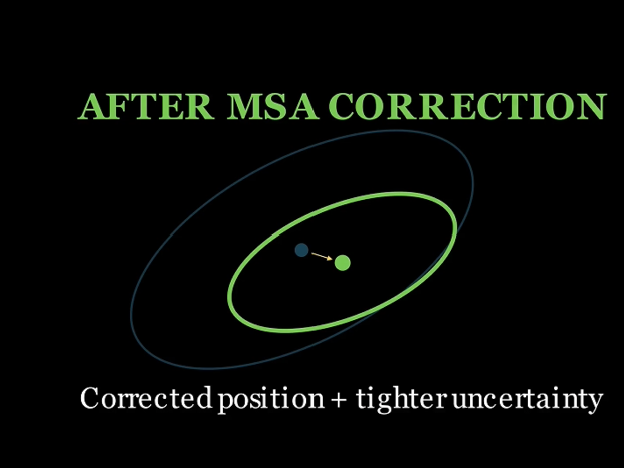

Survey Analysis
Beta
Check the Survey Before You Trust the Position.
Raw MWD measurements can contain sensor bias, interference, and other errors that affect calculated wellbore position. DirectionalPlan analyzes these measurements to identify potential survey errors and evaluate corrections.
✓
Import raw MWD survey measurements
✓
Analyze accelerometer and magnetometer behavior
✓
Identify potential survey error sources
✓
Compare raw and analyzed trajectory position
✓
Generate a survey analysis report
Survey Corrections is currently a beta engineering analysis tool.
Independent verification is required before operational use.
Browser-Based PDF Deliverables
Create planning reports, anti-collision reports, and wall plots quickly.
DirectionalPlan.com can generate professional PDF deliverables directly from your browser, including directional planning reports, anti-collision reports, and wall plot packages. These outputs are designed to support BLM and state directional planning submittals.
Directional Report
Export planned surveys, plan sections, reference data, magnetics, and well details in a clean PDF report.
Anti-Collision Report
Generate PDF anti-collision reports with offset summaries, C-C distance, separation factor, ellipse details, and warning/critical rows.

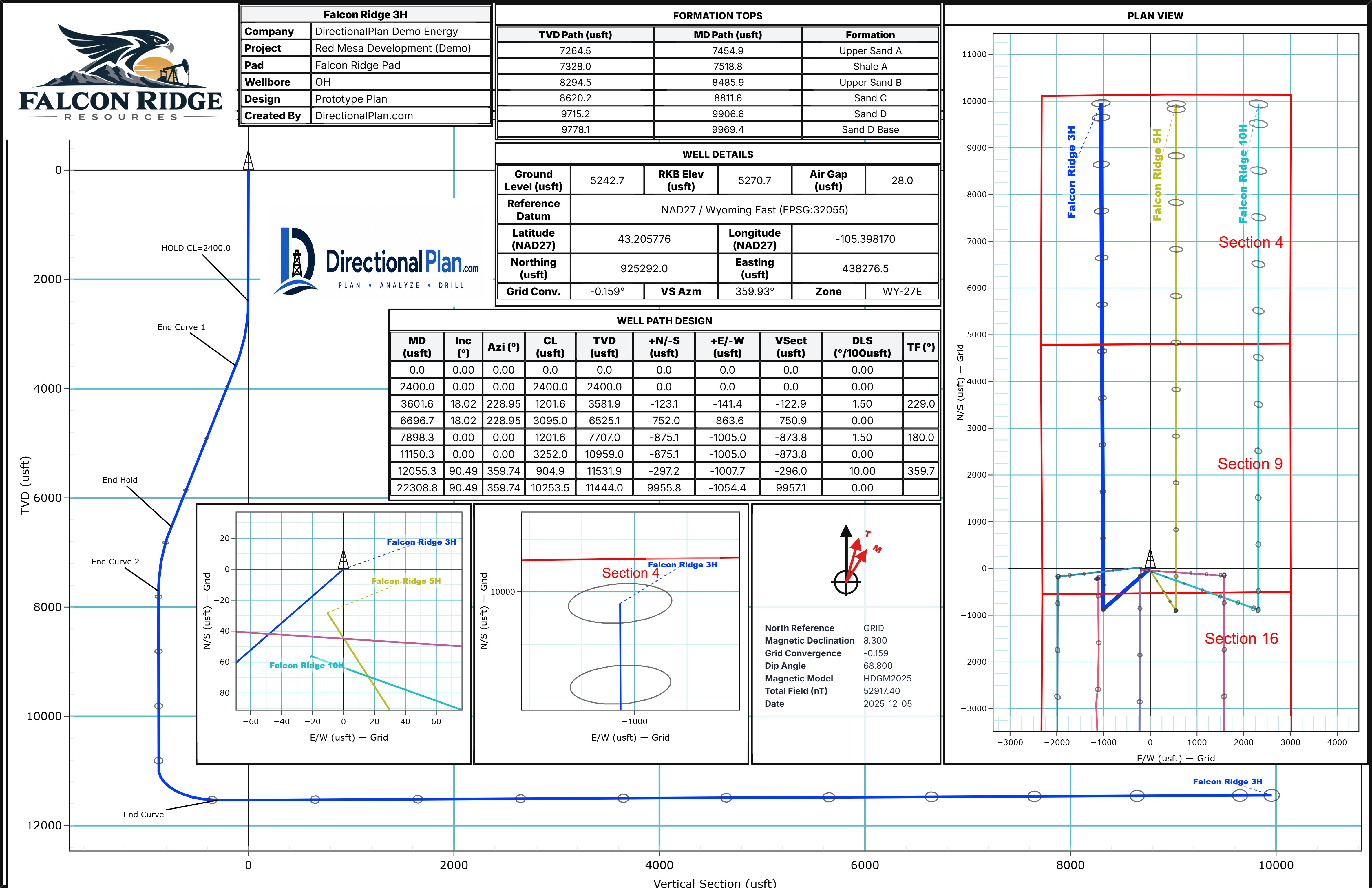

Wall Plot PDF
Build browser-based wall plots with plan view, section view, well path design, title block, magnetics, formations, and well details.

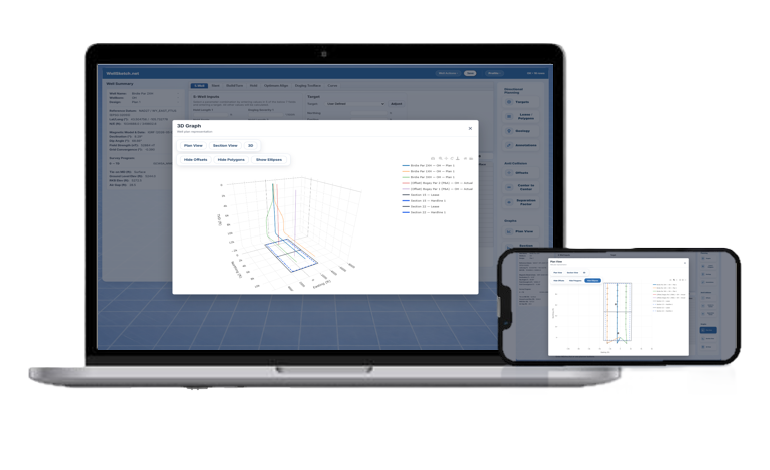

Run Anywhere
No Installs. No Limits.
Just Your Browser.
DirectionalPlan.com runs entirely in your browser so you can plan, analyze, and collaborate from anywhere.
✓ Use on desktop, laptop, tablet, or phone
✓ No software installation or IT overhead
✓ Access projects from anywhere
✓ Designed for real field use
Survey Management
Manage Every Survey.
All in One Place.
A centralized, multi-well survey management workspace for planned, actual, offset, and sidetrack data.
✓ Manage planned, actual, offset, and sidetrack wells
✓ Compare multi-well trajectories in plan view
✓ Keep survey context organized by well and design
✓ Streamlined from planning to production

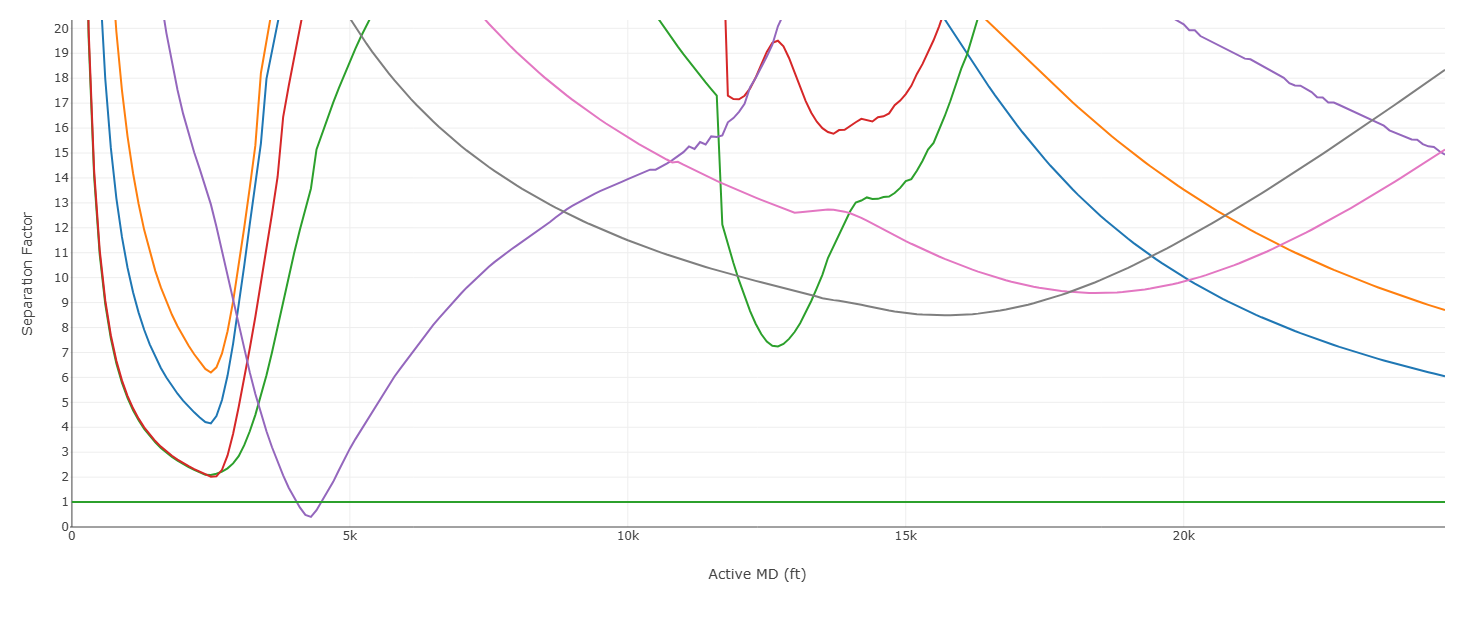

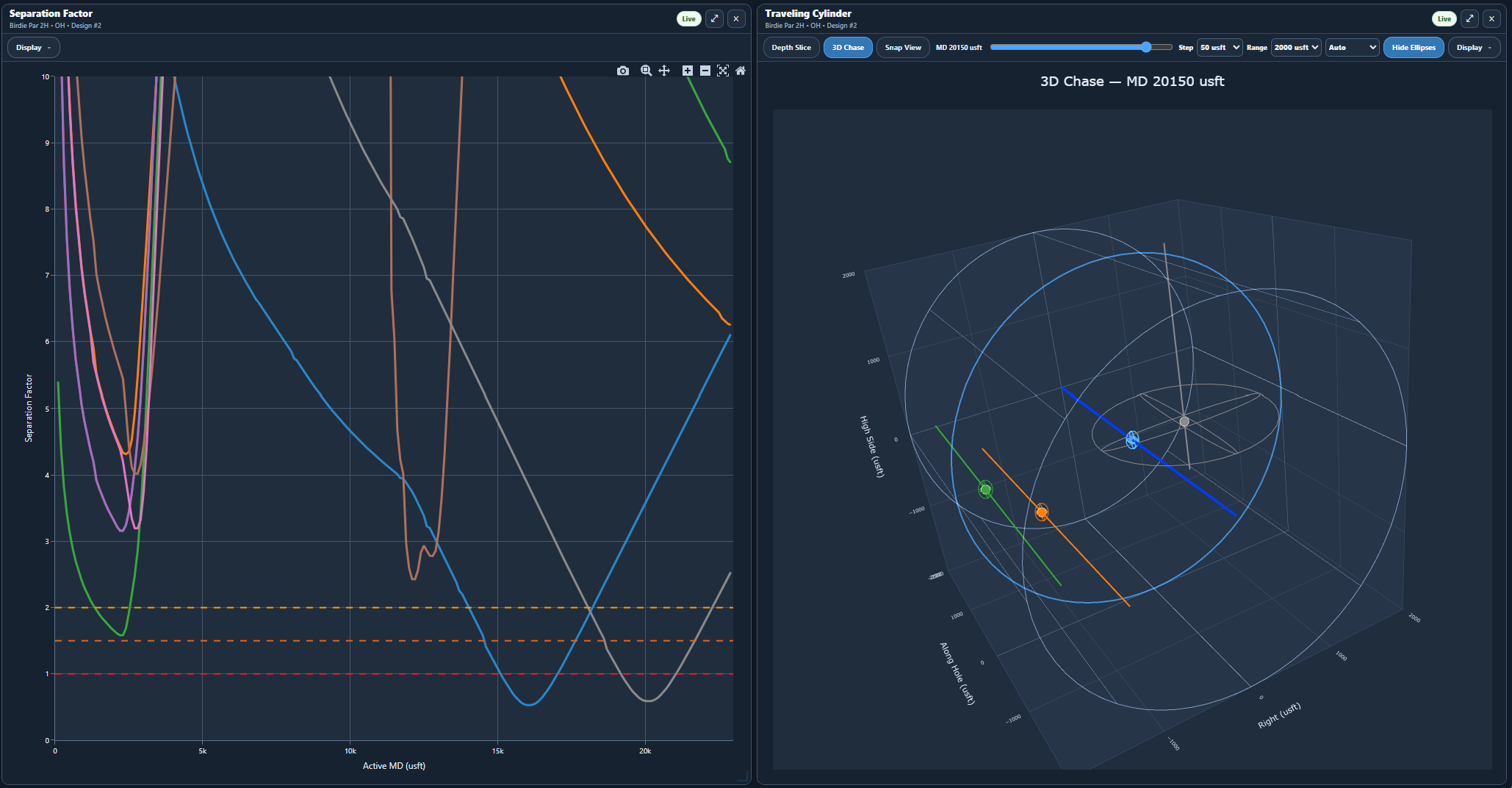

Anti-Collision Analysis
Engineer with Confidence

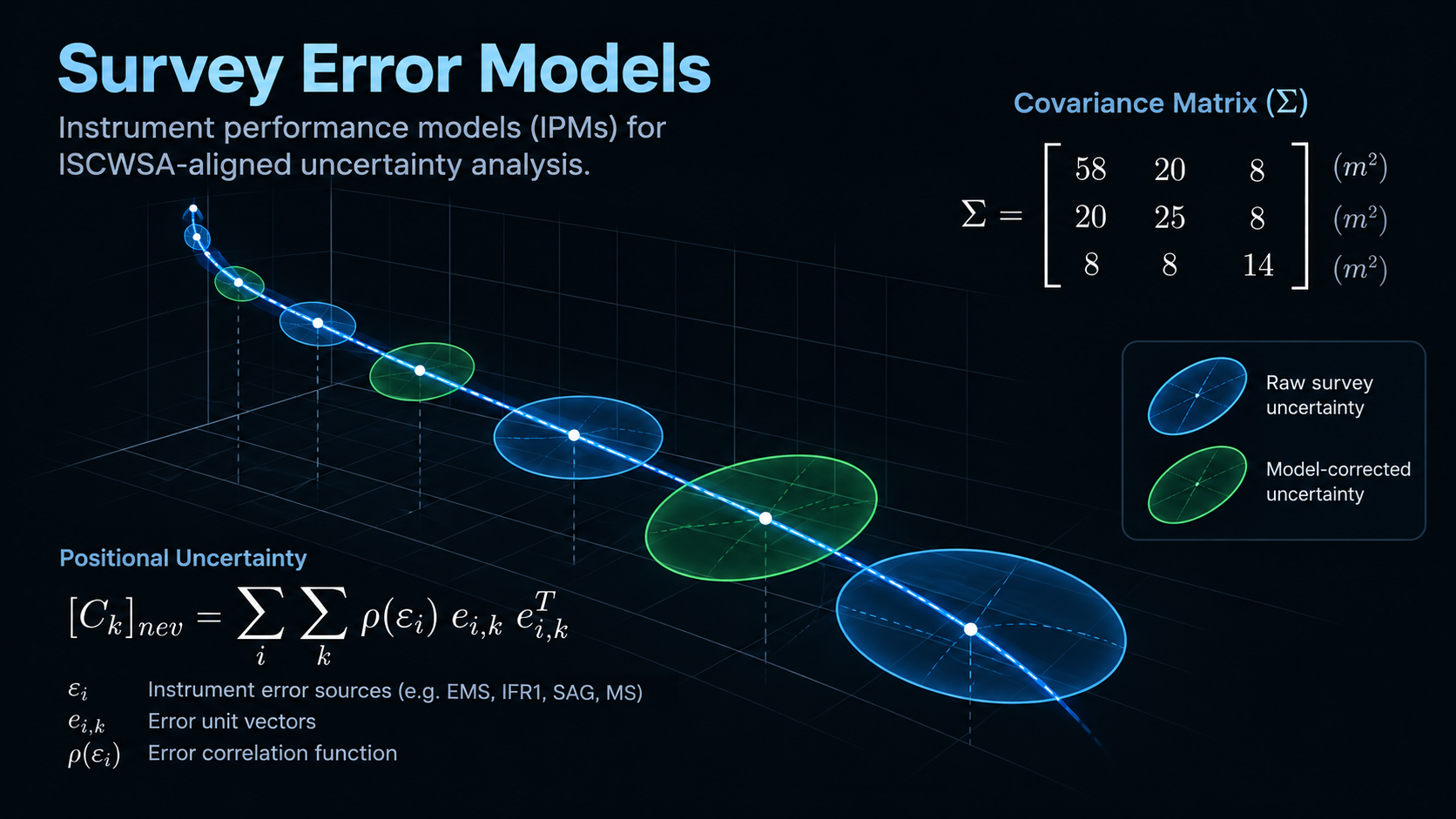

Separation factor analysis, center-to-center tracking, and ISCWSA-aligned uncertainty modeling help evaluate drilling risk with confidence.
✓ Separation Factor analysis
✓ Center-to-center distance tracking
✓ Uncertainty modeling and visualization
✓ Clear, actionable results

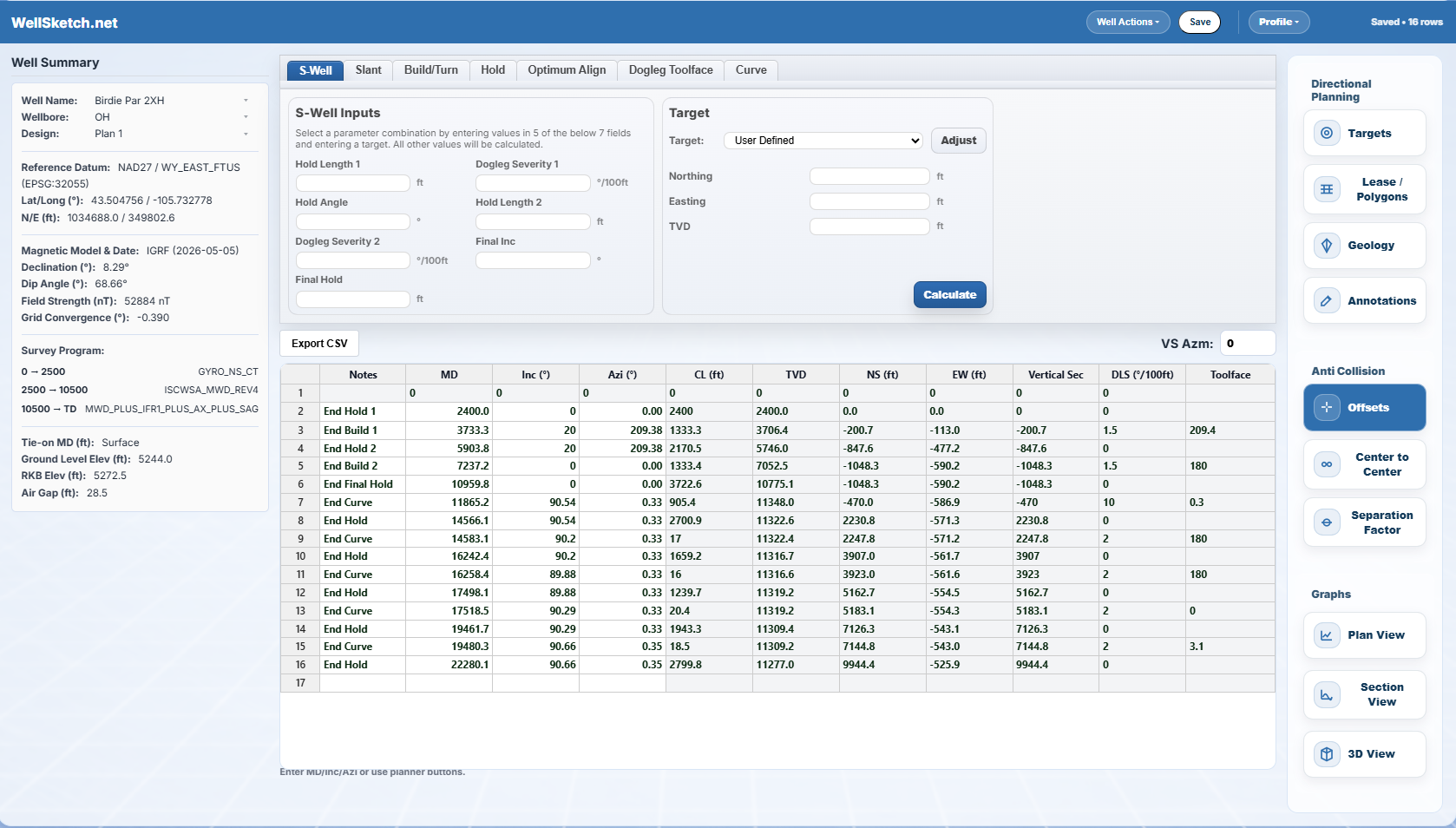

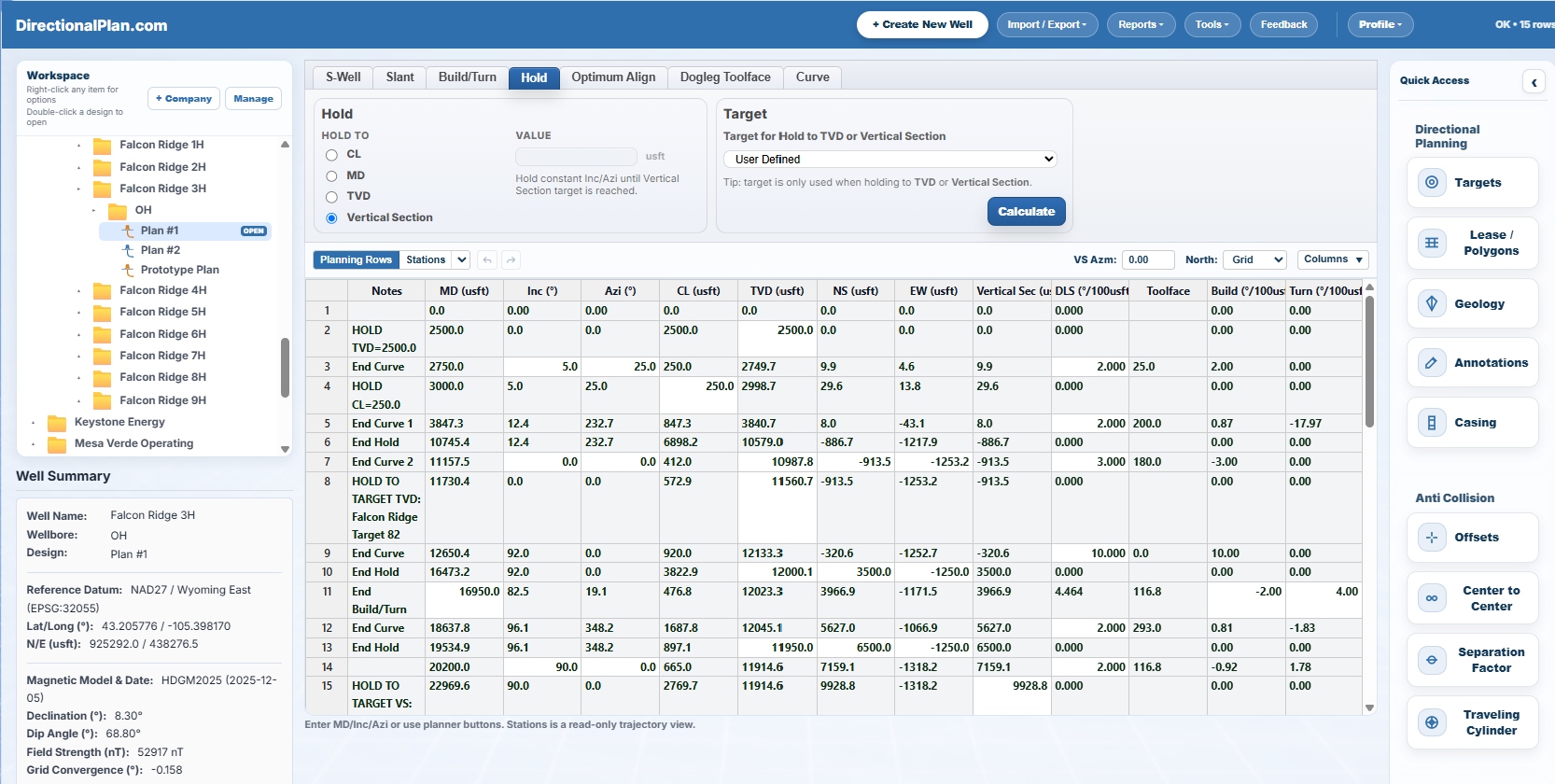

Well Planning
Plan Smarter,
Drill Better
Build accurate well plans using proven methods and validate geometry as you design.
✓ Build, hold, turn, slant, and S-well planning methods
✓ Continuous plan validation
✓ True vertical depth and section analysis
✓ Simple, intuitive planning tools
Standards-Based Engineering
Built around established directional drilling methodologies, including ISCWSA-based anti-collision practices.
Accurate & Reliable
Engineered for accuracy, repeatability, and trust.
Built for Directional Teams
Designed for practical well planning, analysis, and engineering.
